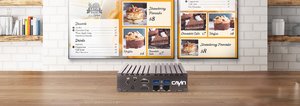

CAYIN SMP-2200: Compact 4K UHD Digital Signage Player
Main Features
Ready-to-use Digital Signage Player
SMP-2200, the industrial-grade hardware, is bundled with dedicated digital signage software, SMP-NEO2, as a complete media player for digital sign applications. SMP-2200 and SMP-NEO2 are optimized to work well together. Not only will you enjoy a seamless user experience, but you can also manage the device remotely from your web browser without installing any additional software.
Dual LAN Ports Collaborate with Firewall Strengthen Security
SMP-2200 digital signage player is equipped with two LAN ports. One port can be used to access the Internet with inbuilt firewall, while the other port can be used to log into SMP’s web-based management interface through a local area network. Administrators can not only avoid the hazards from the internet, but also manage SMP players within a secure LAN. This leading design offers a safer and more flexible network planning for large-scale digital signage projects.
Support Intuitive Multi-Touch Gestures
SMP-2200 players support integration with HID compliant touch panels and multi-touch gestures. Users can tap, swipe, pinch or spread one or two fingers to click, change, zoom in or out web pages. Thus, digital signage can interact with customers in a more intuitive way. You may also create your own custom gestures to suit your specific needs and drive customer engagement.
Built to Convey Instant and Media-rich Messages
SMP-2200 supports a variety of multimedia formats and can playback 4K UHD video, Flash® animation, HTML5 web page, image, music, and text ticker. Incorporated with CAYIN CMS server or UVC compatible USB camera, the player can even play live video. The richness of your digital signage networks is not limited to promotional videos, other contents such as news, weather, social media, streaming videos or any partial web page can also be easily adopted to enrich your digital signage presentations.
Unique Dual Video Outputs Widely Broadening Applications
One SMP-2200 digital signage player can control two screens in both portrait and landscape orientation for most popular or even user-defined resolutions. Moreover, SMP-2200 supports the following four signal output modes:
- Single Mode: connect to one screen
- Clone Mode: present identical contents on two screens
- Extended Mode: link 2 screens together and present content stretching across 2 screens
- Distinct Mode: present different contents on 2 screens
Intelligent and Intuitive Scheduling Management
Playback schedules can be arranged in a variety of ways! You can insert a one-time event or arrange periodic tasks based on daily, weekly, monthly or yearly timescales. You can assign a date, a time period, or even a day in a specific week of a month (e.g. 2nd Sunday in May). Location-based scheduling is also doable to largely increase the flexibility.
SMP-2200 provides two viewing modes, calendar and timetable, for you to facilitate schedule management. In addition to editing a schedule directly on an individual SMP media player, you can also choose to centrally control multiple players in groups by a CMS server.
Mobile and Place-Based Digital Signage
SMP-2200 can be integrated with 3G/4G and GPS technology to provide mobile and place-based solutions. Players installed in moving vehicles can playback contents based on both time and location. Administrators can also locate each player on Google Maps and instantly have an idea of overall connection status of all media players.
Easy-to-Use Template Creation in Two Ways
With SMP-NEO2, SMP-2200 provides a web-based Skin Editor so that users can perform a drag-and-drop operation to define the size and the location of each zone directly on SMP players. In addition, experienced web designers can also utilize any web-editing tool to create HTML pages with the greatest of flexibility.
Rich Library and Cloud Resources
All necessary raw materials, including multimedia files, fonts, clocks, skins, programs, and playlists, can be accessed easily in the Library to assist you in organizing resources. Moreover, the system allows you to upload your desired fonts or even to download the latest templates from CAYIN’s Cloud service for free to greatly enrich your content.
Instant Remote Diagnostics and Preliminary Maintenance
Administrators can perform troubleshooting remotely by retrieving log records and monitoring key operational activities, such as system resource usage, CPU temperature and network topology. To obtain the optimal performance and functionality, users will be prompted to install patches when new software updates are available. If an abnormal situation occurs, SMP-2200 is equipped with a self-repair mechanism to restart the system automatically. Administrators can also restore configurations or recover a system immediately whenever it is necessary.
Technical Specifications
- Dimension: 129 (W) x 109.4 (D) x 34 (H) mm
- Weight: 0.9 Kg (with hard drive)
- Network: 10/100/1000 Mbps Ethernet x 2; 802.11 b/g/n/ac WIFI controller (optional); 3G/4G data network (optional)
- Internal Storage: SSD 30GB (Optional Upgrade: up to 256GB)
- External Storage: Supports up to 4TB
- Video: HDMI x 2; VGA x 1
- Audio: Phone Jack (Analog Stereo); HDMI Audio (Digital)
- Power: 100~240V AC (with internal adaptor); DC 12V, 3A
- Others: RS-232 (COM) x 1 ; USB 3.0 x 4
